Product details
Product number
933-S7-09-00001
Flange
CF160
Materials
Stainless steel, steel, titanium

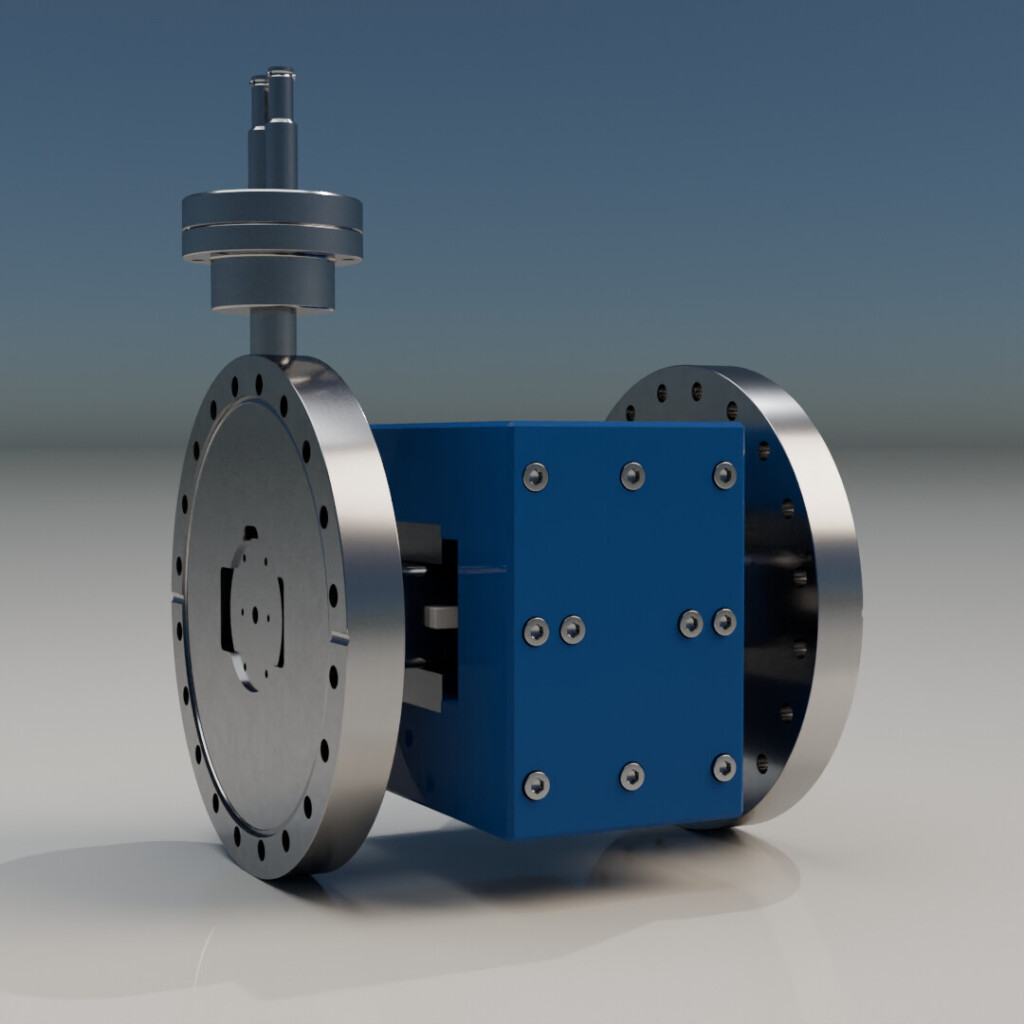

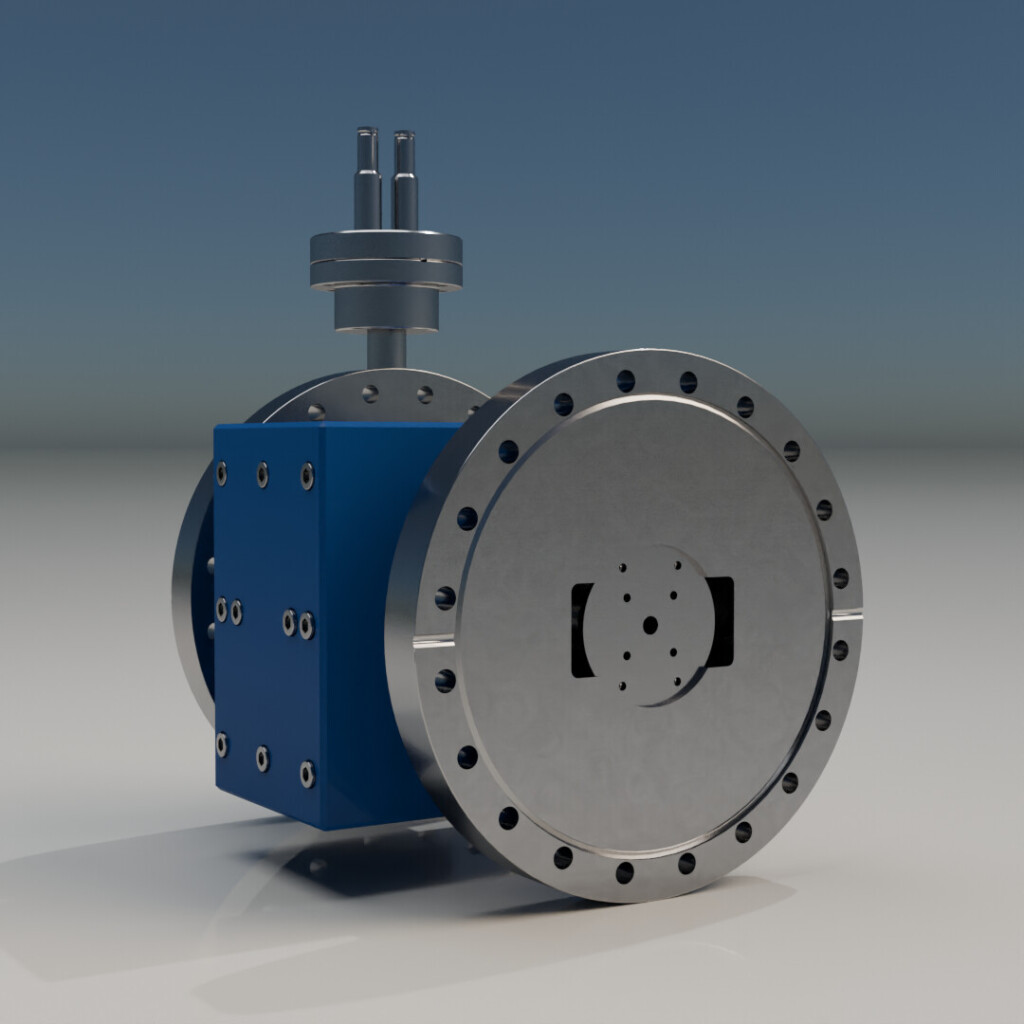

The CF160 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.
Special features
Sample design
- Suitable design for operation with light, single-charged ions with energies around 5 keV
- 5 mm diameter entry and exit apertures
- Beam-stressed parts (e.g., electrodes, collimator, apertures) made of sputter-resistant materials
- Electrodes, magnetic yoke, and magnetic flux optimized to fit customer needs regarding beam energy and beam diameter
- SHV 5 kV electrical feedthrough on a single DN40 CF flange
