4 | Beam Analysis and Diagnostics

D.I.S Germany offers a wide range of different products for charged particle beam analysis and diagnostics in order to determine all relevant beam properties.

In addition to the offered products D.I.S also has the capacity to adapt its devices to the specific needs of customers. These customized solutions enables us to provide a broad spectrum of services and applications.

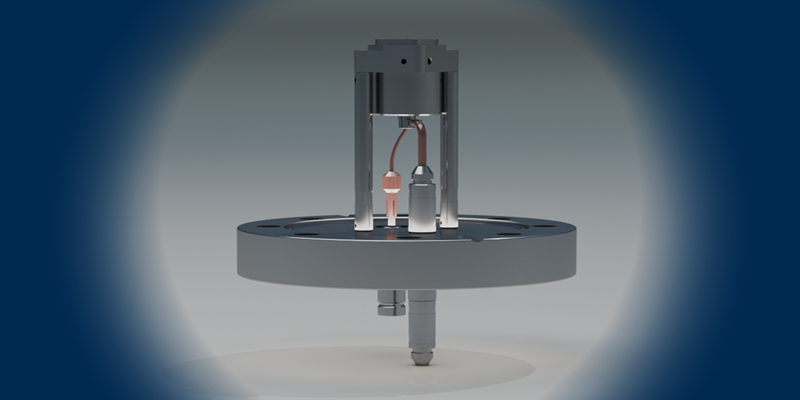

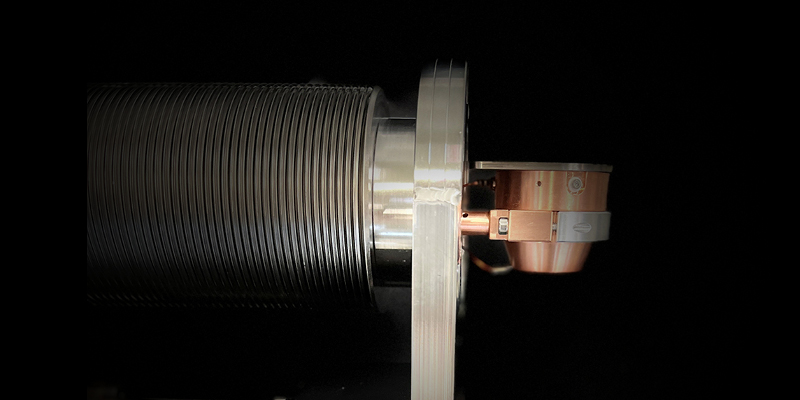

  • A | Faraday Cup

    View products
  • B | Slit Systems

    View products

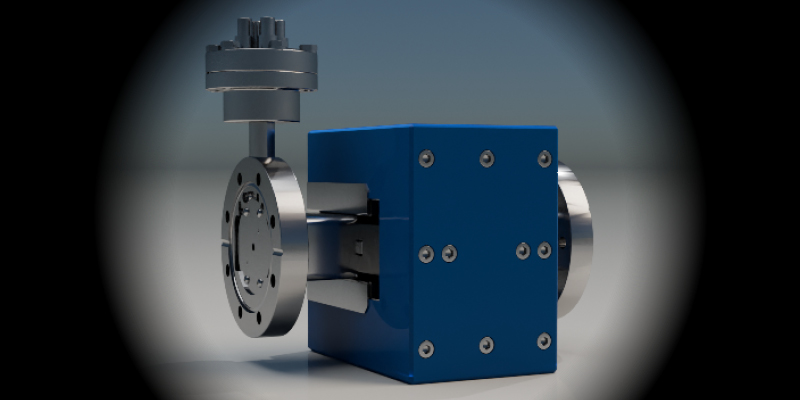

  • C | Wien Filter

    View products
  • D | Neutral Filter

    View products

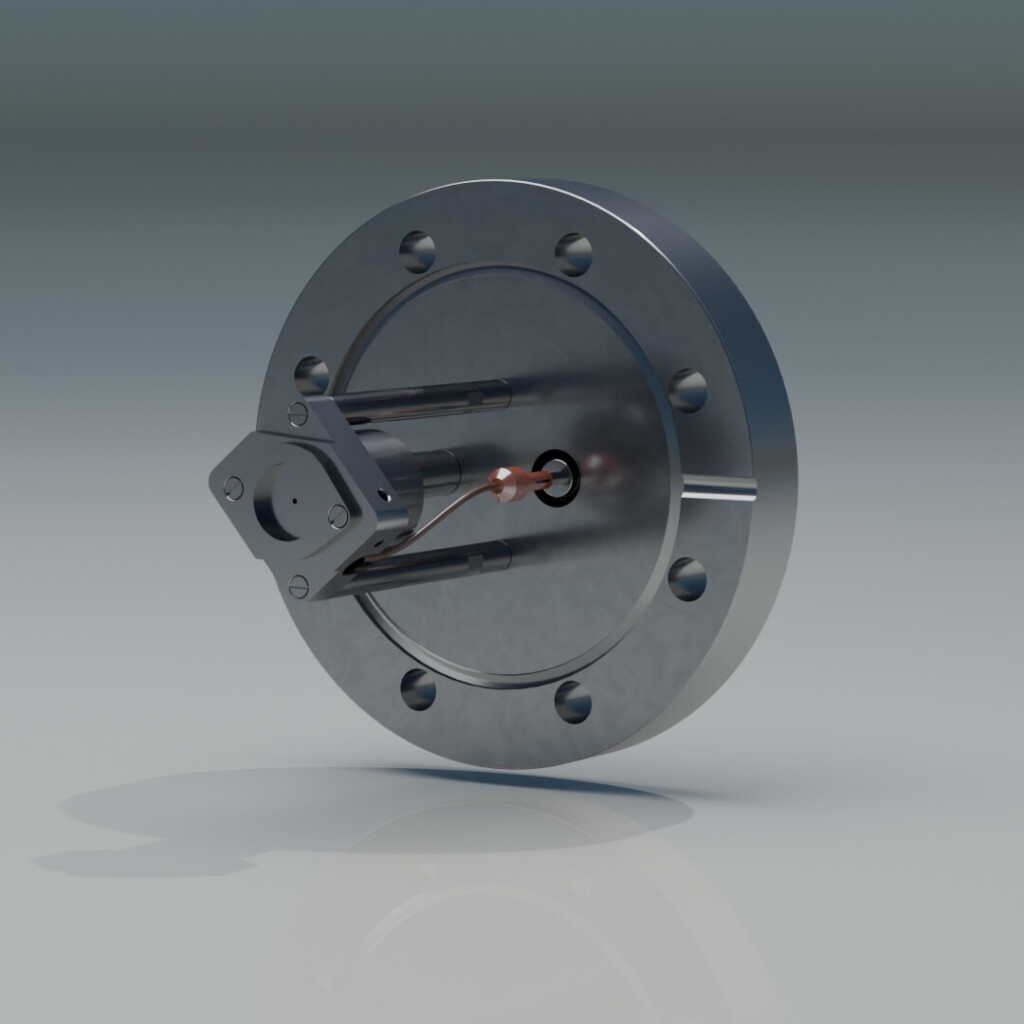

  • Faraday Cup | 3 W

    Faraday Cup | 3 W

    Our CF63 inline Faraday cup is a passively cooled solution for real-time charged particle beam current measurement.

    View product: Faraday Cup | 3 W

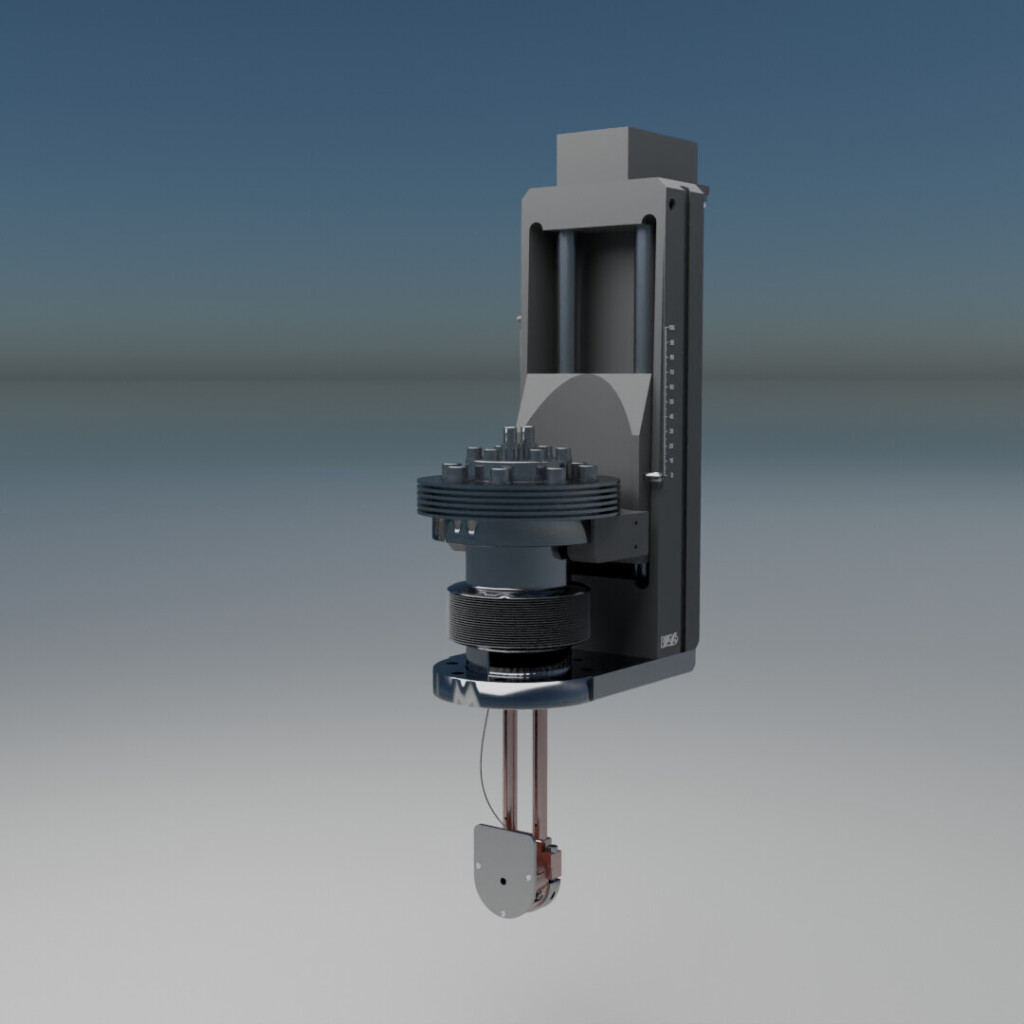

  • Faraday Cup | 30 W

    Faraday Cup | 30 W

    Our CF63 Faraday features passive cooling for power loads up to 30 W.

    View product: Faraday Cup | 30 W

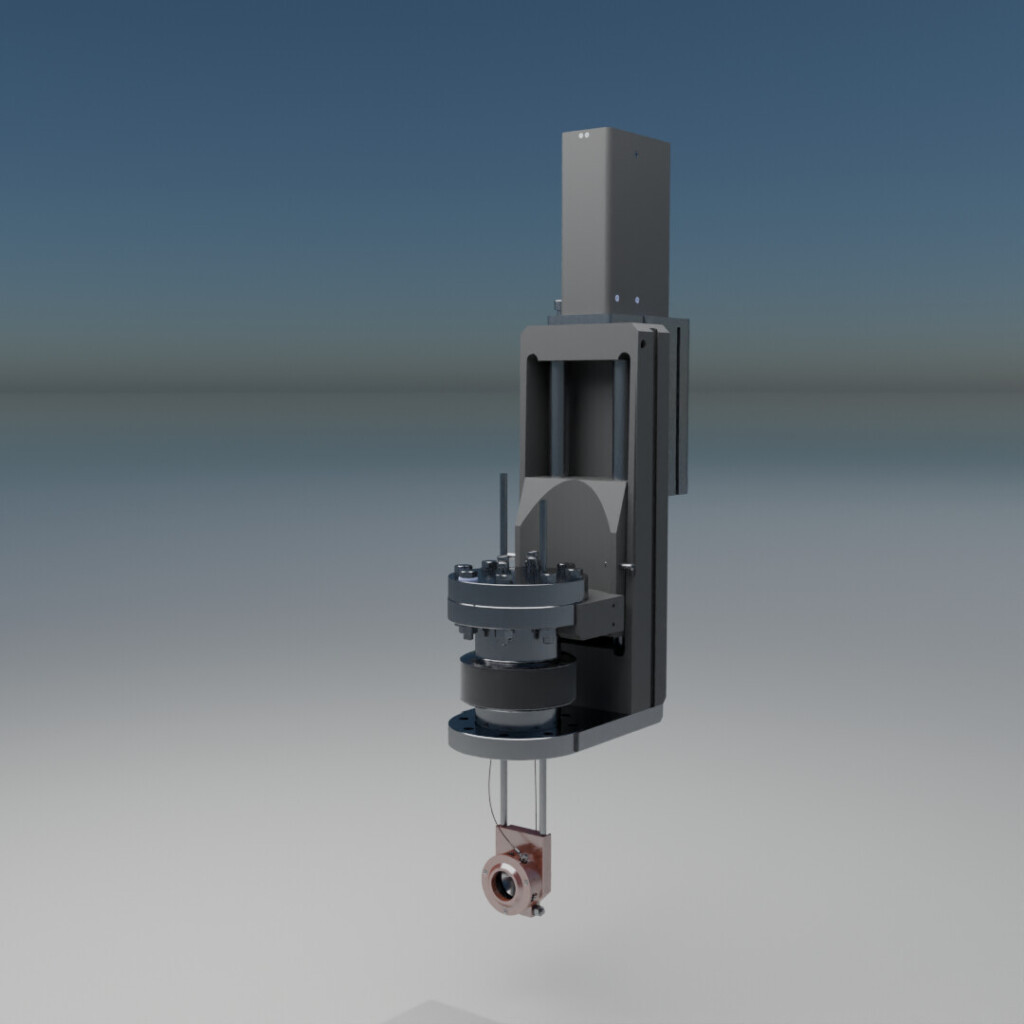

  • Faraday Cup | 60 W

    Faraday Cup | 60 W

    Our CF63 Faraday cup features water cooling for power loads up to 60 W and maintains a temperature below 60°C in extreme UHV environments.

    View product: Faraday Cup | 60 W
  • Faraday Cup | 200 W

    Faraday Cup | 200 W

    Our CF63 Faraday cup features water cooling for thermal power loads up to 200 W.

    View product: Faraday Cup | 200 W

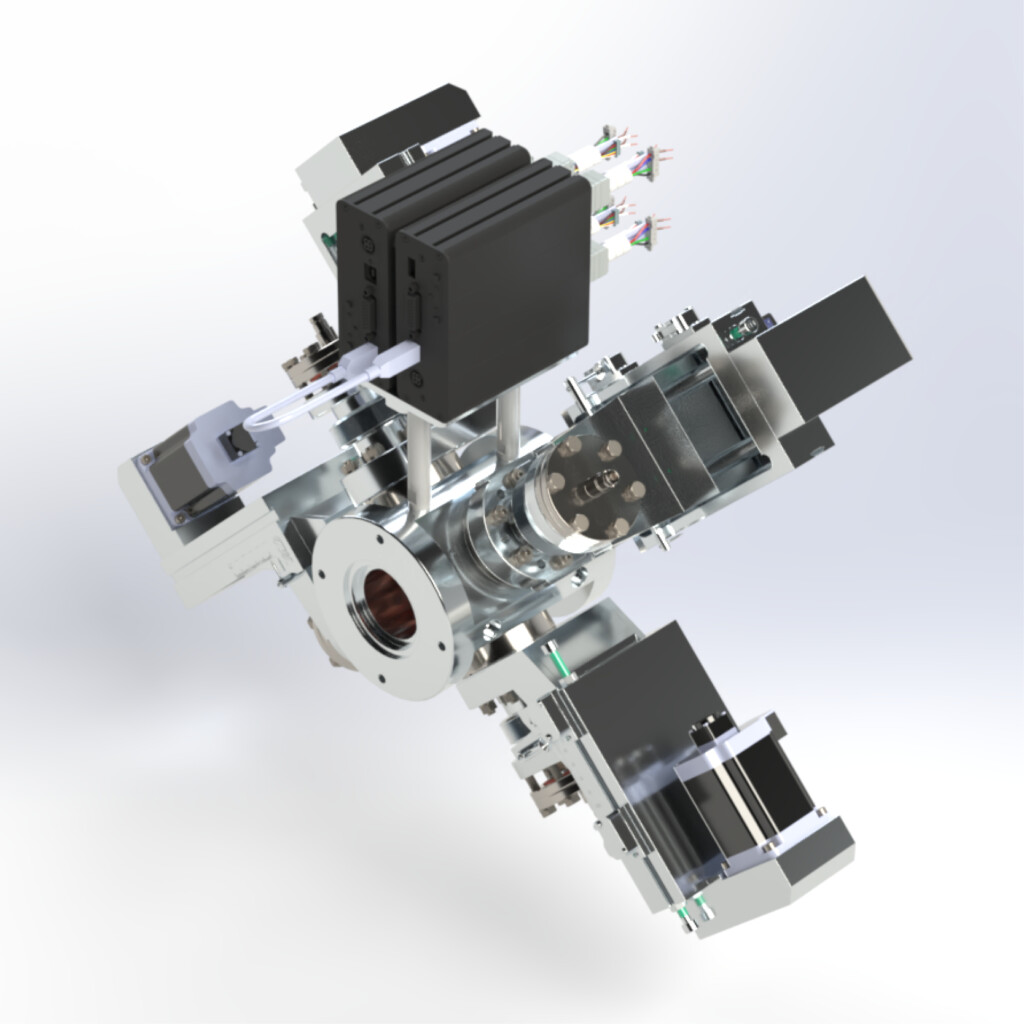

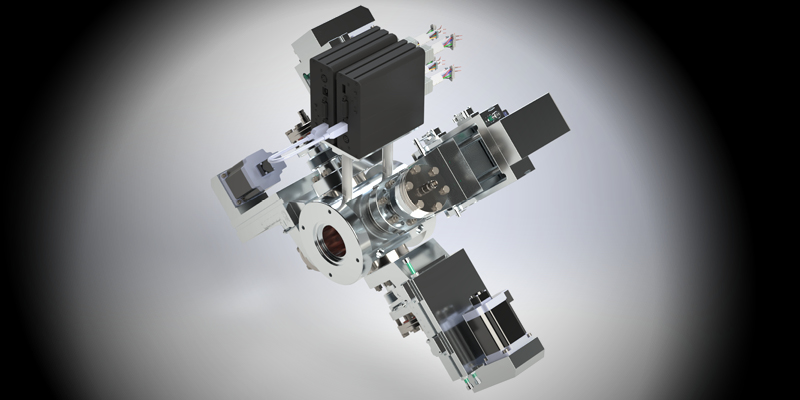

  • Slit System | Low Power 4 Jaw | DN63

    Slit System | Low Power 4 Jaw | DN63

    The system is designed for collimating beams of charged particles with an energy of 3 MeV and a beam power up to 6 W beam power.

    View product: Slit System | Low Power 4 Jaw | DN63

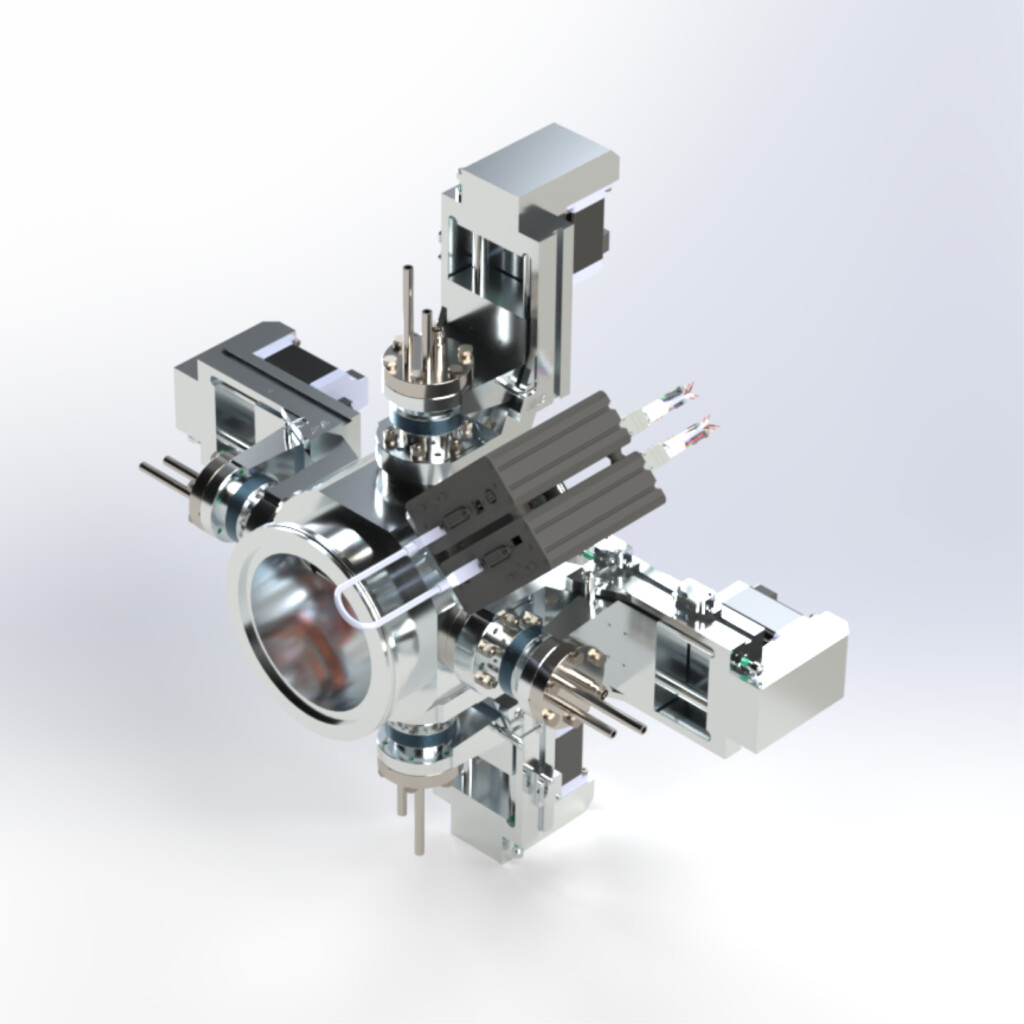

  • Slit System | High Power 4 Jaw | DN160

    Slit System | High Power 4 Jaw | DN160

    The system is designed for collimating beams of charged particles with an energy of 18 MeV and a beam power up to 270 W beam power.

    View product: Slit System | High Power 4 Jaw | DN160
  • Neutral Particle Filter

    Neutral Particle Filter

    D.I.S neutral particle filter removes neutral particles from a particle beam.

    View product: Neutral Particle Filter
  • Wien Filter CF63 | 0.5 kV

    Wien Filter CF63 | 0.5 kV

    The CF63 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.

    View product: Wien Filter CF63 | 0.5 kV
  • Wien Filter CF63 | 5 kV

    Wien Filter CF63 | 5 kV

    The CF63 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.

    View product: Wien Filter CF63 | 5 kV
  • Wien Filter CF63 | 10 kV

    Wien Filter CF63 | 10 kV

    The CF63 flange Wien filter separates charged particle beams by velocity using orthogonally superimposed magnetic and electric fields.

    View product: Wien Filter CF63 | 10 kV
1 2
Next Page
