Product details
Product number
922-S7-09-00004
Flange
CF100
Material housing
Stainless steel
Principle of operation
Electrostatic

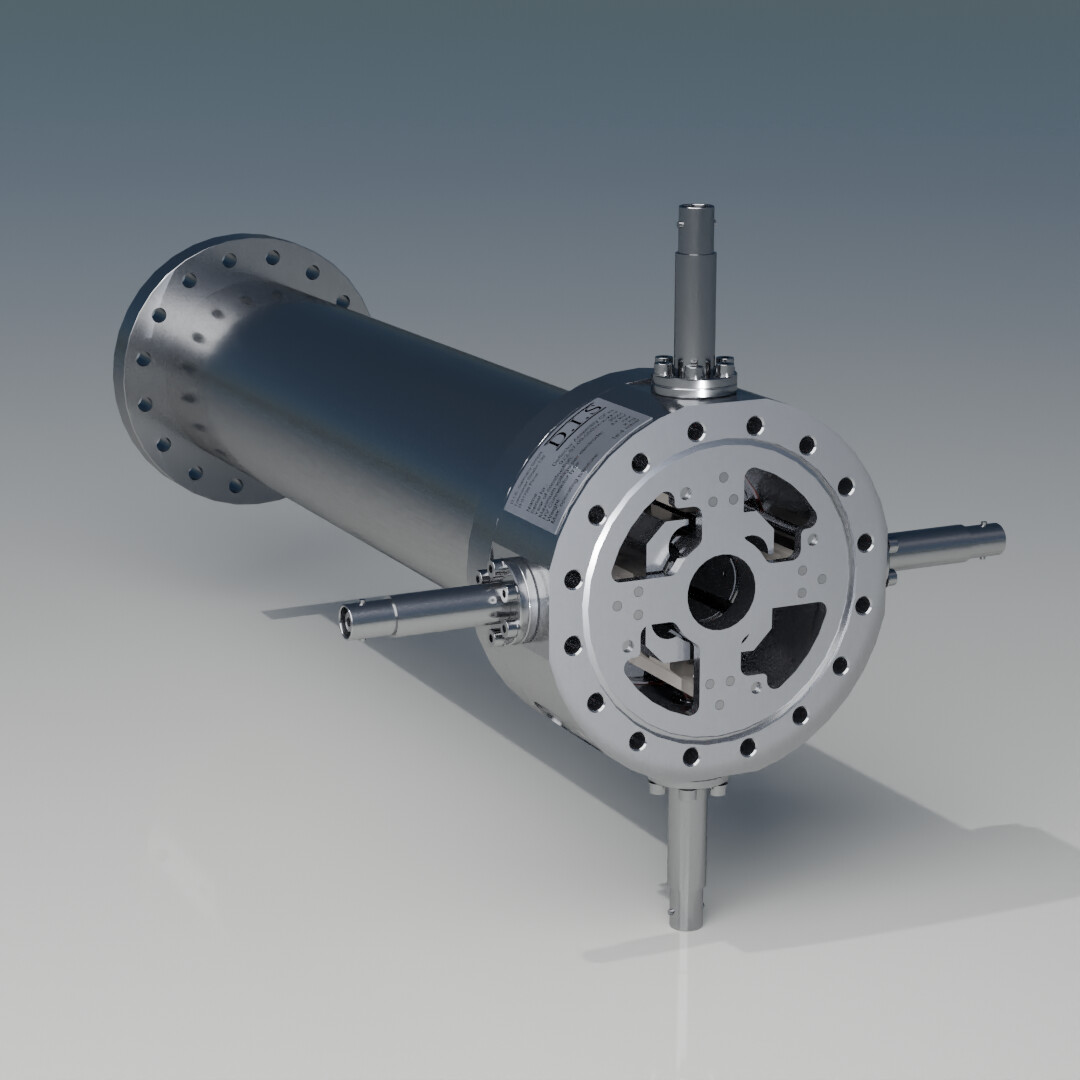

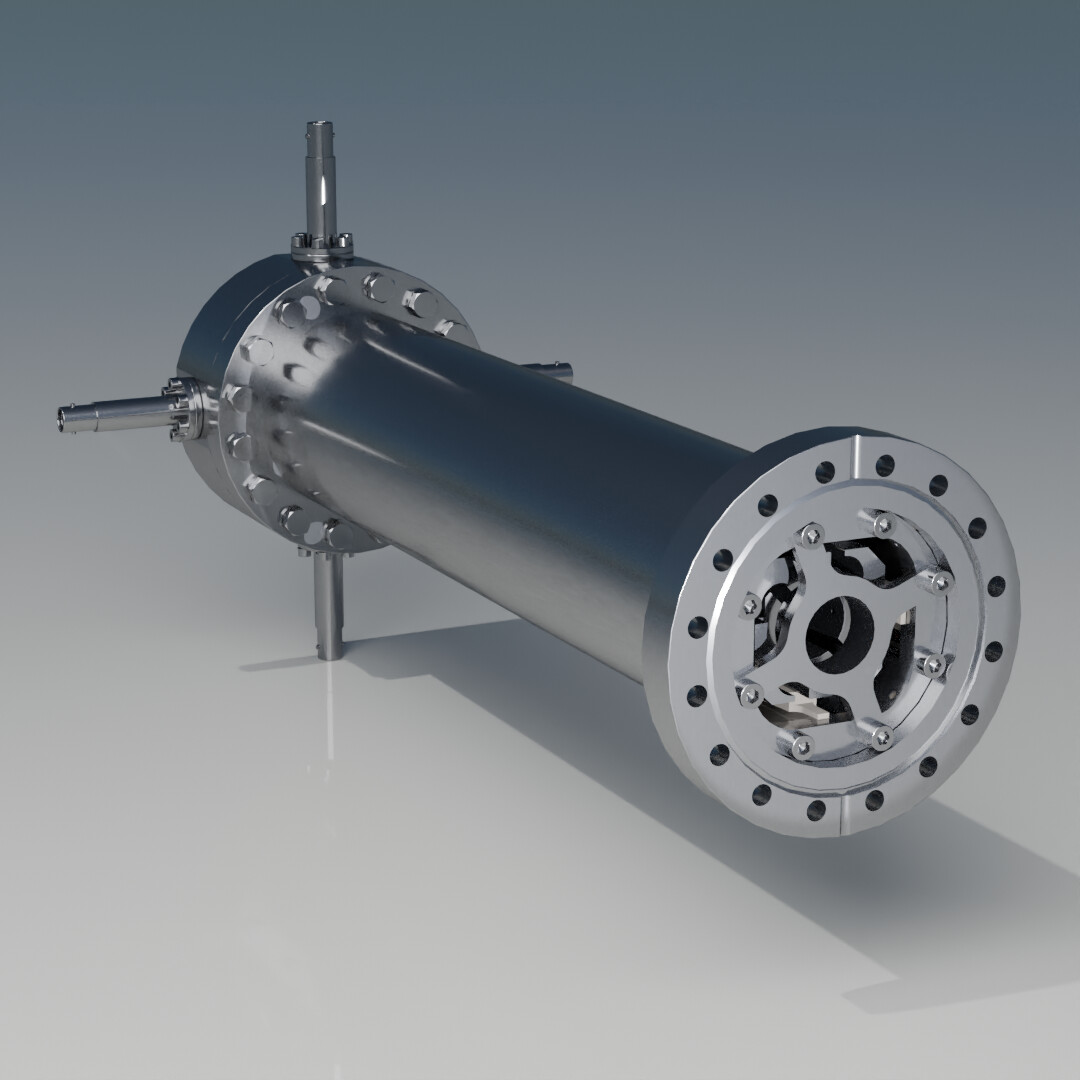

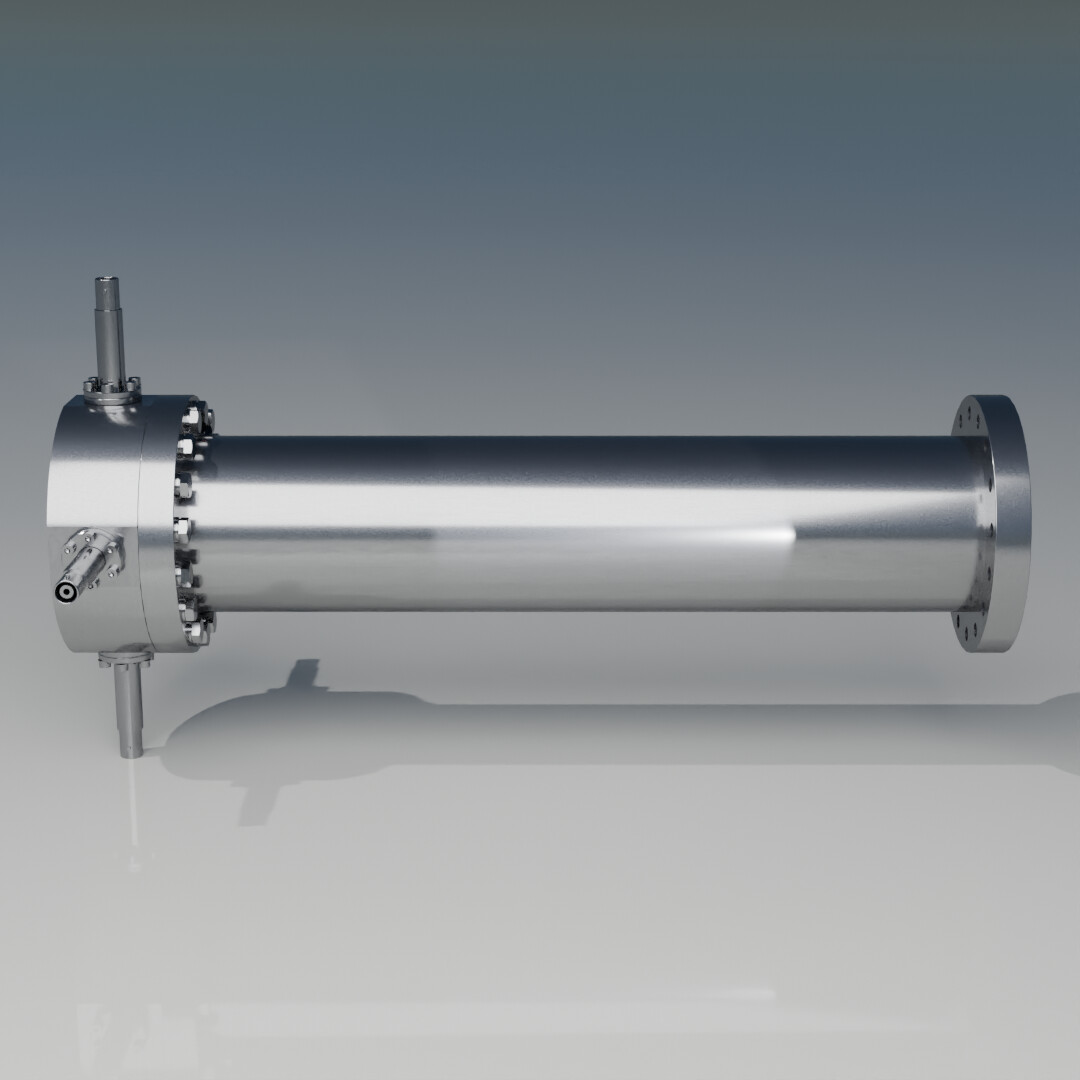

Electrostatic deflectors are ion-optical components used for the controlled steering and positioning of charged particle beams. They generate transverse electrostatic fields that deflect ions or electrons without significantly altering their kinetic energy.
Special features
- Stainless steel housing
- DN100 CF beamline interface flange
- beam outlet flange rotatable
- 4 cylindrical electrode segments with individual high voltage feedthrough
- 4 x DN16 CF 20 kV SHV feedthrough connected to electrode
- 40 millimeter combined electrode inner diameter
- Overall length of 545 mm
